FEATURES

• 15,000 BTU Power Boil burner
  Delivers high heat for fast boiling

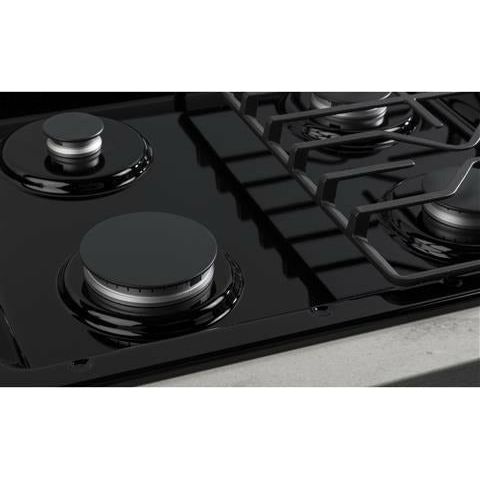

• Deep recessed cooktop
  Designed with a recessed surface to help contain spills and make cleaning easy
• MAX burner system
  Delivers the same maximum BTU power to propane and natural gas cooktops

• Cooktop Burner Type	4 Sealed
  Cooktop Surface
  Ignition System	Electronic
  Burner - Left Front	15,000 BTU Power Boil
  Burner - Left Rear	5,000 BTU
  Burner - Right Front	12,000 BTU
  Burner - Right Rear	9,500 BTU

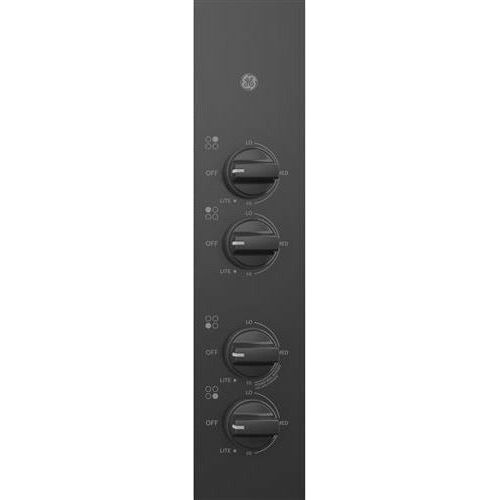

  Control Type	Knob
  Control Location	Right Side
  Cooktop Burner Grate Features	Continuous Grates Dishwasher Safe
  Cooktop Burner Grate Material	Standard Cast
  Fuel Type	Natural Gas (factory set)
  Valves (Degree of Turn)	270
  Cooktop Type	Continuous Grates

• APPEARANCE
  Color Appearance	Black
  Control Knobs	Dishwasher Safe Gloss Black
  Cooktop Burner Grate Color	Matte Black

• WEIGHTS & DIMENSIONS
  Approximate Shipping Weight	40 lb
  Cabinet Width	30 in
  Cutout Dimensions (Width x Depth) (In.)	28-1/2 x 19-5/8
  Net Weight	34 lb
  Overall Depth	21 in
  Overall Height	4 3/4 in
  Overall Width	30 in

• POWER / RATINGS
  Burner BTU Ratings (000's/BTU) - LP Gas	(1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0
  Burner BTU Ratings (000's/BTU) - Natural Gas	(1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0
  Volts/Hertz/Amps	120V; 60Hz; 5A

• CLAIMS & CERTIFICATIONS
  ADA Compliant
  California Prop 65

• ACCESSORIES
  LP Conversion Kit	Included

• WARRANTY
  Parts Warranty	Limited 1-year entire appliance
  Labor Warranty	Limited 1-year entire appliance
  Warranty Notes	See written warranty for full details
